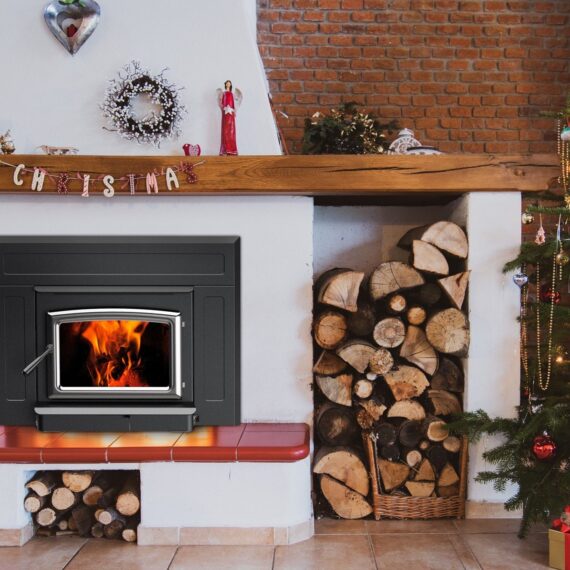

Pacific Energy Vista Inbuilt

Heats 220m²+

Introducing the Pacific Energy Vista Inbuilt LE2 SMART wood heater

Heats up to 220m² > 250+m²

NOW AVAILABLE

The Vista LE2 has the option to add the ACMS smart control

ACMS micro adjusts your heaters primary and secondary air controls to ensure ultimate efficiency

– Burn 1 ton a year less wood

– Reduce your heaters smoke by 40%

– Extended burn time by up to 30%

Compare Products

Introducing the Pacific Energy Vista LE2 SMART wood heater

Heats up to 220M2

The Vista LE2 has the option to add the ACMS smart control

ACMS micro adjusts your heaters primary and secondary air controls to ensure ultimate efficiency

– Burn 1 ton a year less wood

– Reduce your heaters smoke by 40%

– Extended burn time by up to 30%

Available on traditional legs, or more modern pedestal, the Vista LE2 offers the latest in technology and efficiency.

Categories: , ,
ib-chim

Performance

Heating up to 220+m2, the Pacific Energy Vista LE2 Insert has a tested average 69% efficiency / 75% Max efficiency
As for emissions, the Vista insert is tested at 0.97grms,
Heating Capacity up to 220m2

Optional SMART ACMS Controller

The option of adding the ACMS SMART control turns your manual wood heaters into the latest SMART technology.
Two thermostats detect changes in the fire, and the air flow is automatically adjusted to achieve optimum performance.

Next Gen SMART wood heater

Smart wood heaters ensure the fire is always burning at the setting.
They burn off more smoke - giving you a cleaner burn + more heat from your wood.

Burn less wood

Smart Wood Heaters are always adjusting them selves to give you the most efficient fire - for the entire burn time.
Its like adding cruise control to your wood heater in ECO mode.
You will save 1 tone of wood each year

Increase performance with ACMS Smart contol

Standard performance
69% efficiency / 75% Max efficiency
With ACMS SMART control
75% efficiency / 83% Max efficiency
This will save you 1 TON of wood per year..

Produce LESS smoke

Adding the ACMS SMART control , you produce 40% less smoke
- Vista LE2 produces 0.97Grms of smoke for every 1kG of wood you burn
- With the ACMS SMART control fitted: 0.6Grms of smoke for every 1kG of wood you burn

Dimensions

Dimensions

Firebox Height 525mm - Width 610mm - Depth 415mm
Fascia Height 710mm - Width 965mm

Pricing




Options


Flue Kit



Total Price $0.00 (inc GST)
Please note that this pricing is indicative only and does not represent a quotation, nor does it include installation or delivery unless explicitly specified.

Specification

dimensions
height mm
width mm
depth mm
Clearances
Style Options Chimney install
Color Options
Rear clearance to combustible mm
Side clearance to combustible mm
Corner clearance to combustible mm
Burn time 12+ hoursh
Info
flue size 150mm
min flue height 4mtrs
hot water No
heating capacity 220m2
Average efficiency 75%
Max efficiency 83%
Emissions 0.6grms
wood length 440mm
Chimney Install Yes
Zero Clearance No
stove weight kg
Made in Canada
Firebox Dimentions - Height 525mm
Firebox Dimentions - Width 610mm
Firebox Dimentions - Depth 595mm
Fascia Dimentions - Height 710mm
Fascia Dimentions - Width 965mm
Min Opening requirements - Height 545mm
Min Opening requirements - Width 630mm
Min Opening requirements - Depth 610mm
Flue Dimensions
Power Lead
Fan 2 Speed with Auto Start

Warranty

10 year warranty on firebox, glass door, baffle LIFETIME warranty on any enamel finished 3 Year warranty on any electrical parts (including fan)
