Home > products > RSF12 -Insulated Room Sealed Flue Kits

RSF12 -Insulated Room Sealed Flue Kits

Suits wood heaters using 300mm ( 12" ) Flue

Pivot’s RSF12 – is a 300mm ( or 12″ ) flue kit – designed, tested and approved for any make – model or brand wood heater that uses 300mm ( or 12″ ) flue.

Its 90% quieter / all stainless steel construction / twist locks together / cleaner lines.

More importantly – its ROOM SEAL – meaning none of your hot air you just made is used to cool the flue down

On average, you will save around 1/2 to 1 ton of wood per year using RSF flue

( and get a longer burn time on your wood heater )

Insulated flues for large wood fireplaces – our RSF12 is desinged and tested to suit all make and model wood heaters, wood fires

Category:
rsf

Insualted Flue

Insulated flue for wood heaters is the most common flue used right around the world.
- Is all stainless steel
- Insulated with ceramic insulation
- And twist locks together

The Size

- The Inner is 300mm ( 12" )
- The outer is 350mm ( 14" )

All Stainless construction

Easier to install

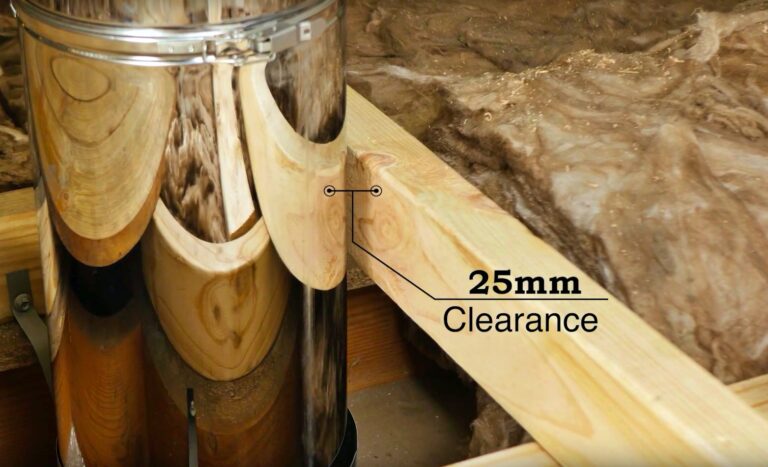

Our RSF12 can be installed as close as 25mm away from timbers.

RSF12 has a 300mm ( 12") inner stainless flue
And a 350mm (14") outer stainless flue

Twist lock joining

Joining Insulated RSF flue is so easy

The twist lock joining + locking band means no screws required at all

Need to install bends ?

Need to install bends?
This video will show you how easy it is with our RSF flue

Why RSF Flue

- All Stainless Steel Construction
- 7 Year Warranty
- 90% quieter than traditional triple Skin Flue Kits
- Saves you 8% heat loss
- Passive Home Approved
- Easier and safer to install

The right flue for your wood heater

- Choose the right flue for your wood heater will save you $$
- Traditional Air cooled flues use 1/2 trailer load of wood - heat lost through the flue
- RSF flue is ROOM SEAL : and will save you 1/2 a trailer load of wood per year
## thats up to $ 350.00 in saving every year

RSF Flue is perfect for inner suburbs

If you live in a noisy area - installing our RSF flue will reduce noise into your home by 95%..

Fit all make and model wood heaters

Pivots Insulated flue comes is tested and approved to As/NZS2918:2008
Approved for all Make / Model and Brand wood heaters

Pricing






Total Price $0.00 (inc GST)
Please note that this pricing is indicative only and does not represent a quotation, nor does it include installation or delivery unless explicitly specified.

Specification

dimensions
height mm
width mm
depth mm
Clearances
Style Options
Color Options
Rear clearance to combustible mm
Side clearance to combustible mm
Corner clearance to combustible mm
Burn time h
Info
flue size mm
min flue height mtrs
hot water No
heating capacity m2
Average efficiency %
Max efficiency %
Emissions grms
wood length mm
stove weight kg
Made in
Fan

Downloads

Videos
